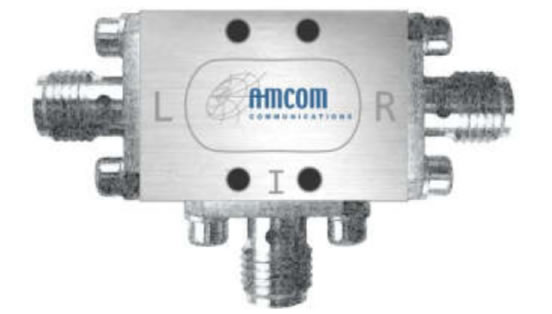

Amcom Frequency Mixers
Please see the tables below for a list of AMCOM Frequency Mixers such as P4 Model - Frequency Mixers and P3 Model - Frequency Mixers that Euro-Tech are able to supply.
P4 Model - Frequency Mixers
| Model | Freq. RF/LO (MHz) | Freq. IF (MHz) | LO Level (dBm) | Conv. Loss (dB) | LO-RF Isolation (dB) | LO-IF Isolation (dB) | RF-IF Isolation (dB) | P1dB (dBm) | IP3 (dBm) | ECCN |
|---|---|---|---|---|---|---|---|---|---|---|
| AM02318010XD-P4 | 2250-18000 | DC-3000 | 13 | 11 | 35 | 20 | 12 | 10 | 20 | EAR99 |
| AM03010015XD-P4 | 3000-10000 | DC-4000 | 17 | 9 | 45 | 45 | 20 | 15 | 23 | EAR99 |
| AM055014011XD-P4 | 5500-14000 | DC-6000 | 15 | 7 | 45 | 25 | 14 | 11 | 20 | EAR99 |
| AM06026011XD-P4 | 6000-26000 | DC-8000 | 13 | 9 | 37 | 37 | 11 | 11 | 22 | EAR99 |
| AM07014010XD-P4 | 7000-14000 | DC-5000 | 13 | 8 | 45 | 36 | 30 | 11 | 22 | EAR99 |
| AM07034012XD-P4 | 7000-34000 | DC-8000 | 15 | 12 | 35 | 40 | 20 | 13 | 22 | EAR99 |
| AM11020011XD-P4 | 11000-20000 | DC-6000 | 13 | 8 | 46 | 40 | 25 | 11 | 18 | EAR99 |
| AM14026012XD-P4 | 14000-26000 | DC-8000 | 13 | 9 | 35 | 35 | 30 | 14 | 20 | EAR99 |
| AM16030013XD-P4 | 16000-30000 | DC-8000 | 13 | 10 | 40 | 34 | 30 | 14 | 21 | EAR99 |
| AM24032013XD-P4 | 24000-32000 | DC-8000 | 13 | 11 | 38 | 40 | 30 | 13 | 18 | EAR99 |
| AM05012008XD-P4 | 5000-12000 | DC-4000 | 10 | 8.5 | 18 | 20 | 25 | 8 | 16 | EAR99 |
| AM072010XD-P4 | 800-2000 | DC-500 | 10 | 9 | 40 | 30 | 22 | 8 | 16 | EAR99 |
| AM154510XD-P4 | 1500-4500 | DC-1500 | 13 | 8.5 | 40 | 35 | 20 | 10 | 19 | EAR99 |
| AM459010XD-P4 | 4500-9000 | DC-2500 | 13 | 9 | 25 | 25 | 20 | 10 | 21 | EAR99 |
| AM09015009XD-P4 | 9000-15000 | DC-2500 | 13 | 8.5 | 40 | 40 | 17 | 9 | 17 | EAR99 |
| AM06014009XD-P4 | 6000-14000 | DC-5000 | 13 | 6.5 | 43 | 22 | 37 | 9.5 | 16 | EAR99 |
| AM11021009XD-P4 | 11000-22000 | DC-6000 | 13 | 6 | 43 | 38 | 25 | 9 | 16 | EAR99 |
| AM16026010XD-P4 | 16000-26000 | DC-9000 | 13 | 7 | 40 | 40 | 25 | 10 | 17 | EAR99 |
| AM20032009XD-P4 | 20000-32000 | DC-10000 | 13 | 7 | 36 | 36 | 26 | 9 | 18 | EAR99 |
P3 Model - Frequency Mixers
| Model | Freq. RF/LO (MHz) | Freq. IF (MHz) | LO Level (dBm) | Conv. Loss (dB) Mid-Band | LO-RF Isolation (dB) Mid-Band | LO-RF Isolation (dB) Min | LO-IF Isolation (dB) Mid-Band | LO-IF Isolation (dB) Min | IIP3@Center Band (typ) (dBm) | ECCN |
|---|---|---|---|---|---|---|---|---|---|---|
| AM020313XD-P3 | 220-300 | DC-80 | 17 | 7.5 | 45 | 38 | 38 | 30 | 26 | EAR99 |
| AM000505XD-P3 | 0.5-500 | DC-500 | 10 | 6.5 | 55 | 35 | 45 | 22 | 15 | EAR99 |
| AM000501XD-P3 | 2-500 | DC-500 | 7 | 6 | 45 | 25 | 45 | 20 | 16 | EAR99 |
| AM010505XD-P3 | 2-500 | DC-500 | 10 | 6 | 45 | 30 | 45 | 25 | 16 | EAR99 |
| AM001001XD-P3 | 5-1000 | DC-1000 | 7 | 7 | 47 | 25 | 45 | 25 | 20 | EAR99 |
| AM011001XD-P3 | 20-1000 | DC-1000 | 7 | 7 | 50 | 28 | 47 | 22 | 17 | EAR99 |
| AM001005XD-P3 | 20-1000 | DC-1000 | 10 | 6.5 | 48 | 25 | 35 | 20 | 20 | EAR99 |
| AM001009XD-P3 | 5-1000 | DC-1000 | 13 | 7 | 39 | 20 | 30 | 17 | 22 | EAR99 |
| AM041201XD-P3 | 400-1200 | DC-800 | 7 | 6 | 40 | 30 | 43 | 33 | 17 | EAR99 |
| AM001209XD-P3 | 10-1200 | DC-1200 | 13 | 8 | 45 | 32 | 42 | 27 | 22 | EAR99 |
| AM001501XD-P3 | 5-1500 | DC-1000 | 7 | 7.5 | 40 | 25 | 40 | 22 | 15 | EAR99 |
| AM001513XD-P3 | 10-1500 | DC-1500 | 17 | 7 | 35 | 29 | 35 | 30 | 26 | EAR99 |
| AM011714XD-P3 | 100-1700 | 50-1500 | 17 | 7 | 34 | 21 | 35 | 22 | 25 | EAR99 |
| AM042001XD-P3 | 350-2000 | DC-400 | 7 | 7 | 36 | 20 | 29 | 20 | 13 | EAR99 |
| AM152001XD-P3 | 1500-2000 | DC-300 | 7 | 6 | 31 | 22 | 28 | 20 | 14 | EAR99 |
| AM002212XD-P3 | 10-2200 | DC-1800 | 17 | 6.5 | 32 | 25 | 35 | 28 | 25 | EAR99 |
| AM212412XD-P3 | 2050-2350 | DC-300 | 13 | 7.2 | 30 | 25 | 27 | 22 | 26 | EAR99 |
| AM142501XD-P3 | 1400-2500 | DC-500 | 7 | 7.5 | 30 | 26 | 25 | 23 | 13 | EAR99 |
| AM002507XD-P3 | 40-2500 | DC-1000 | 13 | 8 | 37 | 27 | 35 | 25 | 26 | EAR99 |
| AM012509XD-P3 | 100-2500 | DC-750 | 13 | 6.5 | 35 | 20 | 30 | 25 | 18 | EAR99 |
| AM012514XD-P3 | 80-2500 | 1-1000 | 17 | 8 | 37 | 27 | 33 | 24 | 30 | EAR99 |
| AM002509XD-P3 | 5-2500 | 5-1500 | 13 | 8.5 | 34 | 23 | 32 | 20 | 18 | EAR99 |
| AM002515XD-P3 | 10-2500 | 10-2500 | 17 | 7.2 | 42 | 35 | 34 | 29 | 27.5 | EAR99 |
| AM002706XD-P3 | 1-2700 | 1-2000 | 10 | 7 | 39 | 24 | 36 | 20 | 20 | EAR99 |
| AM002713XD-P3 | 1-2700 | 1-2000 | 17 | 7 | 38 | 21 | 31 | 20 | 27.8 | EAR99 |
| AM003509XD-P3 | 5-3500 | 5-2500 | 13 | 8 | 38 | 18 | 28 | 18 | 18 | EAR99 |
| AM153510XD-P3 | 1500-3600 | DC-600 | 17 | 8 | 30 | 20 | 34 | 20 | 25 | EAR99 |
| AM004209XD-P3 | 5-4200 | 5-3500 | 13 | 9.8 | 29 | 20 | 26 | 17 | 17 | EAR99 |
| AM084209XD-P3 | 800-4200 | DC-800 | 13 | 9 | 35 | 25 | 18 | 10 | 19 | EAR99 |
| AM154510XD-P3 | 1500-4500 | DC-1500 | 13 | 8.5 | 40 | 29 | 35 | 27 | 19 | EAR99 |
| AM256014XD-P3 | 2500-6000 | DC-1500 | 17 | 8.7 | 20 | 17 | 14 | 8 | 25 | EAR99 |
| AM256009XD-P3 | 2500-6000 | DC-1500 | 13 | 8.5 | 28 | 17 | 14 | 8 | 19 | EAR99 |
| AM459010XD-P3 | 4500-9000 | DC-2500 | 13 | 8.5 | 25 | 17 | 25 | 17 | 21 | EAR99 |
| AM09015010XD-P3 | 9000-15000 | DC-2500 | 13 | 8 | 40 | 30 | 17 | 8 | 17 | EAR99 |
AMCOM GaAs pHEMTs (good power density and efficiency)
| Model | Freq (GHz) | Fmax (GHz) | Gain (dB) | P1dB (dBm) | IP3 (dBm) | Bias (V) | Package | ECCN | S-parameters |
|---|---|---|---|---|---|---|---|---|---|
| AM090WX-CU-R | DC | 6 | 12 | 37 | 45 | +8 / -0.7 | Flange | EAR99 | Download |
| AM120WX-CU-R | DC | 6 | 11.5 | 38 | 46 | +8 / -0.7 | Flange | EAR99 | Download |
| AM030WH4-BI-R | DC | 6 | 21 | 37 | 37 | +28 / -0.7 | SMT | EAR99 | Download |
| AM030WX-BI-R | DC | 10 | 14 | 33 | 34 | +8 / -0.7 | SMT | EAR99 | Download |
| AM060WX-BI-R | DC | 10 | 13.5 | 35.5 | 36.5 | +8 / -0.7 | SMT | EAR99 | Download |
| AM005WX-BI-R | DC | 12 | 17 | 24.5 | 25.5 | +8 / -0.7 | SMT | EAR99 | Download |
| AM010WX-BI-R | DC | 12 | 16 | 28.5 | 30 | +8 / -0.7 | SMT | EAR99 | Download |
| AM005WH2-BI-R | DC | 12 | 20 | 26 | 27 | +14 / -0.7 | SMT | EAR99 | Download |
| AM010WH2-BI-R | DC | 12 | 18 | 30 | 31 | +14 / -0.7 | SMT | EAR99 | Download |
| AM020WH2-BI-R | DC | 12 | 18 | 33 | 34 | +14 / -0.7 | SMT | EAR99 | Download |
| AM030WH2-BI-R | DC | 12 | 18 | 34.5 | 36 | +14 / -0.7 | SMT | EAR99 | Download |
| AM060WH2-CU-R | DC | 12 | 17 | 38 | 38.5 | +14 / -0.7 | Flange | EAR99 | Download |
| AM120WH2-CU-R | DC | 12 | 16 | 39 | 39.5 | +14 / -0.7 | Flange | EAR99 | Download |
