Amcom passive components
Please see the tables below for a list of AMCOM passive components such as bias tees and directional couplers that Euro-Tech are able to supply.
AMCOM Bias Tees
| Model | Fmin (GHz) | Fmax (GHz) | Insertion Loss | I/P Return Loss | O/P Return Loss | DC Current | RF Power |
|---|---|---|---|---|---|---|---|
| AM000100PM-BT | 0.05 | 10 | 0.75dB | 15dB | 15dB | 2.0Amp | 30dBm |
| AM000110PM-BT | 0.05 | 12 | 0.8dB | 18dB | 17dB | 2.0Amp | 30dBm |
| AM000200PM-BT | 0.0003 | 20 | 0.75dB | 20dB | 20dB | 0.8Amp | 30dBm |
AMCOM Directional Couplers
| Model | Fmin (GHz) | Fmax (GHz) | Coupling (dB) | Insertion Loss (dB) | Directivity (TYP) @ 12.4GHz | Directivity (TYP) @ 20GHz | Average Power (W) | Connect |
|---|---|---|---|---|---|---|---|---|
| AM000100DP-20 | DC | 10 | 21 | 3.7 | 14 | 14 | 0.5 | SMA |

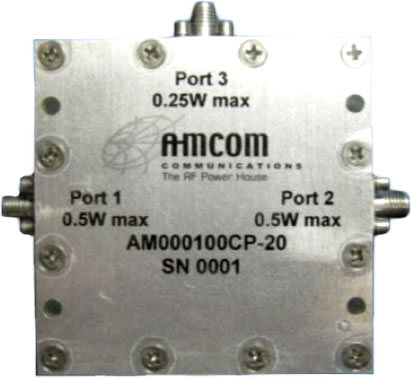

| AM000100CP-20 | DC | 10 | 21 | 2.5 | 14 | 14 | 0.5 | SMA |
| AM010200CP-10 | 1 | 20 | 10 | 1 | 14 | 10 | 30 | SMA |
| AM010200CP-20 | 1 | 20 | 20 | 0.9 | 15 | 11 | 30 | SMA |
| AM010200CP-30 | 1 | 20 | 30 | 0.8 | 14 | 10 | 30 | SMA |
