Amcom RF Transistors
Please see the tables below for a list of AMCOM RF Transistors such as Discrete Power GaN HEMTs, GaAs FETs and GaAs pHEMTs that Euro-Tech are able to supply.
AMCOM Discrete Power GaN HEMTs
| Model | Freq (GHz) | Fmax (GHz) | Gain (dB) | P1dB (dBm) | Psat (dBm) | Bias (V) | Package | ECCN | S-parameters |
|---|---|---|---|---|---|---|---|---|---|
| AM050WN-CU-R | DC | 6 | 16.5 | 41.7 | 43 | +28 / -2 | Flange | EAR99 | Download |

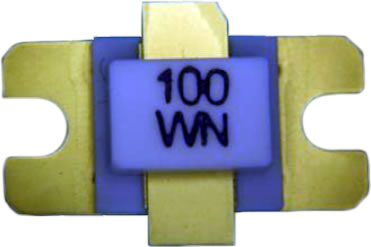

| AM100WN-CU-R | DC | 6 | 14 | 44.5 | 46 | +28 / -2 | Flange | EAR99 | Download |
| AM025WN-BI-R | DC | 8 | 16 | 38.9 | 40 | +28 / -2 | SMT | EAR99 | Download |
| AM012WN-BI-R | DC | 10 | 17 | 36.1 | 37 | +28 / -2 | SMT | EAR99 | Download |
| AM005WN-BI-R | DC | 12 | 15 | 32 | 33.5 | +28 / -2 | SMT | EAR99 | Download |
| AM012WN-00-R | DC | 15 | 22 | 36.1 | 37.7 | +28 / -2 | Die | EAR99 | Download |
| AM025WN-00-R | DC | 15 | 21 | 38.9 | 40.5 | +28 / -2 | Die | EAR99 | Download |
| AM050WN-00-R | DC | 15 | 20 | 41.7 | 43.3 | +28 / -2 | Die | 3A001.b.3 | Download |
| AM100WN-00-R | DC | 15 | 19 | 44.5 | 46.1 | +28 / -2 | Die | 3A001.b.3 | Download |
| AM005WN-00-R | DC | 18 | 23 | 32 | 33.4 | +28 / -2 | Die | EAR99 | Download |
AMCOM GaAs FETs (good linearity at back-off)
| Model | Freq (GHz) | Fmax (GHz) | Gain (dB) | P1dB (dBm) | IP3 (dBm) | Bias (V) | Package | ECCN | S-parameters |
|---|---|---|---|---|---|---|---|---|---|
| AM010MH4-BI-R | DC | 3 | 19 | 31 | 46 | +28 / -1 | SMT | EAR99 | Download |
| AM030MH4-BI-R | DC | 3 | 19 | 36 | 49 | +28 / -1 | SMT | EAR99 | Download |
| AM006MX-QG-R | DC | 6 | 13 | 22 | 34 | +5 / -1 | SMT | EAR99 | Download |
| AM012MX-QG-R | DC | 6 | 13.5 | 25 | 37 | +5 / -1 | SMT | EAR99 | Download |
| AM024MX-QG-R | DC | 6 | 13 | 28 | 39 | +5 / -1 | SMT | EAR99 | Download |
| AM036MX-QG-R | DC | 6 | 12 | 29.5 | 42 | +5 / -1 | SMT | EAR99 | Download |
| AM048MX-QG-R | DC | 6 | 11 | 31 | 43 | +5 / -1 | SMT | EAR99 | Download |
| AM072MX-CU-R | DC | 6 | 11 | 34 | 46 | +7 /-1 | Flange | EAR99 | Download |
| AM100MX-CU-R | DC | 6 | 10 | 35 | 48 | +7 /-1 | Flange | EAR99 | Download |
| AM150MX-CU-R | DC | 6 | 10 | 36.5 | 50 | +7 /-1 | Flange | EAR99 | Download |
| AM200MX-CU-R | DC | 6 | 10 | 38 | 48 | +7 /-1 | Flange | EAR99 | Download |
| AM300MX-CU-R | DC | 6 | 9 | 39.5 | 51 | +7 /-1 | Flange | EAR99 | Download |
| AM005MH2-BI-R | DC | 6 | 15 | 25 | 40 | +14 / -1 | SMT | EAR99 | Download |
| AM010MH2-BI-R | DC | 6 | 15 | 28 | 43 | +14 / -1 | SMT | EAR99 | Download |
| AM032MH4-BI-R | DC | 6 | 19 | 36 | 49 | +28 / -1 | SMT | EAR99 | Download |
AMCOM GaAs pHEMTs (good power density and efficiency)
| Model | Freq (GHz) | Fmax (GHz) | Gain (dB) | P1dB (dBm) | IP3 (dBm) | Bias (V) | Package | ECCN | S-parameters |
|---|---|---|---|---|---|---|---|---|---|
| AM090WX-CU-R | DC | 6 | 12 | 37 | 45 | +8 / -0.7 | Flange | EAR99 | Download |
| AM120WX-CU-R | DC | 6 | 11.5 | 38 | 46 | +8 / -0.7 | Flange | EAR99 | Download |
| AM030WH4-BI-R | DC | 6 | 21 | 37 | 37 | +28 / -0.7 | SMT | EAR99 | Download |
| AM030WX-BI-R | DC | 10 | 14 | 33 | 34 | +8 / -0.7 | SMT | EAR99 | Download |
| AM060WX-BI-R | DC | 10 | 13.5 | 35.5 | 36.5 | +8 / -0.7 | SMT | EAR99 | Download |
| AM005WX-BI-R | DC | 12 | 17 | 24.5 | 25.5 | +8 / -0.7 | SMT | EAR99 | Download |
| AM010WX-BI-R | DC | 12 | 16 | 28.5 | 30 | +8 / -0.7 | SMT | EAR99 | Download |
| AM005WH2-BI-R | DC | 12 | 20 | 26 | 27 | +14 / -0.7 | SMT | EAR99 | Download |
| AM010WH2-BI-R | DC | 12 | 18 | 30 | 31 | +14 / -0.7 | SMT | EAR99 | Download |
| AM020WH2-BI-R | DC | 12 | 18 | 33 | 34 | +14 / -0.7 | SMT | EAR99 | Download |
| AM030WH2-BI-R | DC | 12 | 18 | 34.5 | 36 | +14 / -0.7 | SMT | EAR99 | Download |
| AM060WH2-CU-R | DC | 12 | 17 | 38 | 38.5 | +14 / -0.7 | Flange | EAR99 | Download |
| AM120WH2-CU-R | DC | 12 | 16 | 39 | 39.5 | +14 / -0.7 | Flange | EAR99 | Download |
