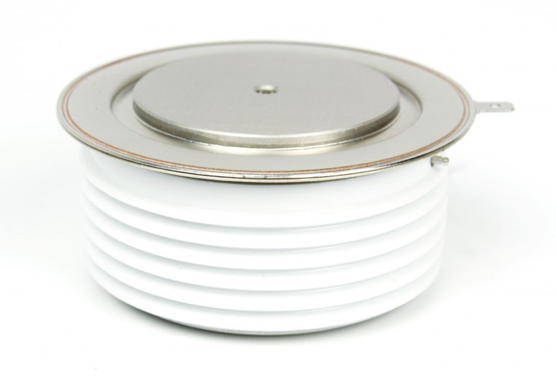

Dynex Asymmetric Bypass Thyristors

dynex logo
Please see the table below for a list of Dynex Asymmetric Bypass Thyristors that Euro-Tech are able to supply..



Dynex Gate Turn-Off Thyristor



Part Number VDRM (V) VRRM (V) IT (AV) at TC= 80°C (A) ITSM (kA) dV/dt (V/µs) Non Rep. dI/dt (A/µs) Rth(j-c) (°C/W) Outline Type Code Flange OD / Contact OD / Height (mm) DC Cosmic Ray Failure Rate @ 50% VRRM (FITs) Clamping Force (kN) min - max
ACR3200VR33 1000 3300 3200 43 10 1500 0.00746 V 110 / 73 / 27.57 9 48 - 59
ACR2900VR45 1000 4500 2900 39 10 1300 0.00746 V 110 / 73 / 27.69 8 48 - 59
