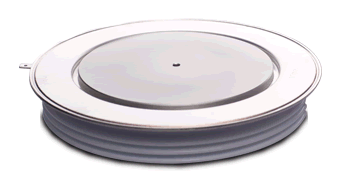

Dynex Pulse Power Thyristors
Please see the table below for a list of DynexPulse Power Thyristors that Euro-Tech are able to supply..
| Part Number |
VDRM (V) |
VRRM (V) |
IT (AV) at
TC= 80°C
(A) |
ITSM at
Tvj VR = 0
(kA) |
dV/dt
(V/us) |
dI/dt
(A/us) |
to Ipk
(kA) |
Rth(j-c)
(°C/W) |
Outline Type Code |
Flange OD Contact OD Height (mm) |
Max
voltage
(Main Selection) |
| ACR300SG33 |
3300 |
20 |
493 |
6.5 |
3000 |
2000 |
0.125 |
0.042 |
G |
58.5/34/27 |
3300 |
| PT40QPx45 |
4500 |
16 |
760 |
13 |
200 |
5000 |
20 |
0.033 |
P |
56/38/37 |
4500 |
| PT60QHx45 |
4500 |
16 |
1000 |
22.5 |
175 |
10000 |
40 |
0.013 |
H |
100/63/26.5 |
4500 |
| PT85QWx45 |
4500 |
16 |
1670 |
37 |
200 |
22000 |
90 |
0.01 |
W |
120/84.6/27.7 |
4500 |
