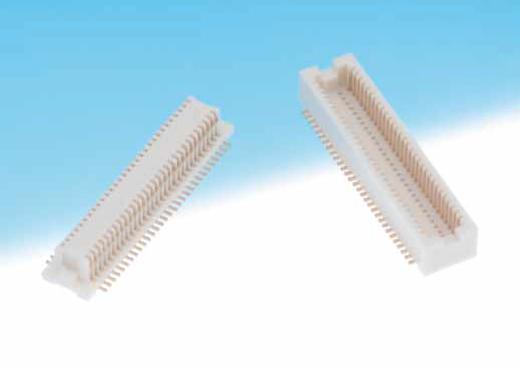

DF12(3.0)-80DS-0.5V(86) : HIROSE
Manufacturer's Part Number: DF12(3.0)-80DS-0.5V(86)
Description of item: CONN BOARD TO BOARD RCP 80 POS 0.5MM SOLDER ST SMD EMBOSSED T/R ;5370613
Manufacturer: HIROSE
Price: Available on application
Base part number: 12-3.0-80DS-0.5V-86
Stripped part number: DF123080DS05V86
Contact Euro-Tech using the RFQ button below or call us on +44 (0) 20 8760 7302
Product Specifications
| Number of Positions | 80 Position |
| Pitch | 0.5 mm |
| Number of Rows | 2 |
| Mounting Type | Surface Mount |
| Mounting Angle | Vertical |
| Maximum Current Rating | 300 mA |
| Maximum Voltage Rating | 50 Vac |
| Insulation Resistance | 500 MOhm |
| Contact Plating | Gold |
| Contact Material | Phosphor Copper |
| Product Type | Board to Board Connector |
| Height Above Board | 2.20mm |
| Contact Finish Thickness | 0.203µm |
| Mating Cycles | 50 |
| Factory Pack Quantity | 1000 |
| Operating Temperature Range | -45°C to +125°C |
| Product Dimensions (LxDxH) | 23mm x 4.6mm x 2.2mm |
| Unit Weight | 360 mg |
